Custom Single Screw Lines

Plastic Extruder Machine Lines — Pipe, Hose, Profile & TPE Band

A plastic extruder machine — also called a plastic extruding machine line — is the core equipment that shapes raw plastic into continuous pipe, hose, or profile products.

At Jinxin, we manufacture custom single screw extrusion lines engineered to your exact specifications—not selected from a catalog.

  • In-House Tooling Verification
  • FAT Run-Tested Before Shipment
  • Preset Startup Parameters Included

Our Product Lines

Every plastic extruding machine configuration below is built to your material, product specs, and factory voltage.

Hose & Tube Extrusion

For reinforced hoses, smooth shower hoses, and precision small tubes.

PVC Braided Reinforced Hose Line

PVC Braided Reinforced Hose Line

Materials: PVC | Structure: 2-layer / 3-layer reinforced

Reinforced hose with fiber braid and smooth surface finish.


View Machine Details
Multi-color Smooth Shower Hose Line

Multi-color Smooth Shower Hose

Materials: PVC-based (confirm per product spec) | Multi-layer

Flexible shower hose with matte or gloss color options.


View Machine Details

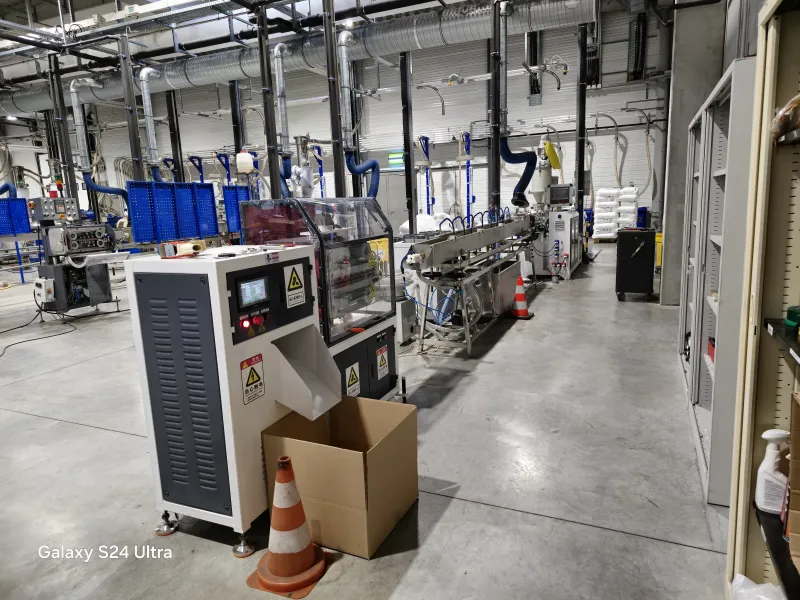

dip tube manufacturing machine line

Dip Tube Extrusion Machine

Materials: PP, LDPE | Precision small tube for packaging

Precision spray pump tubes with tight wall-thickness tolerance.


View Machine Details

Rigid Pipes & Profiles

For construction, plumbing, lighting and decorative profiles.

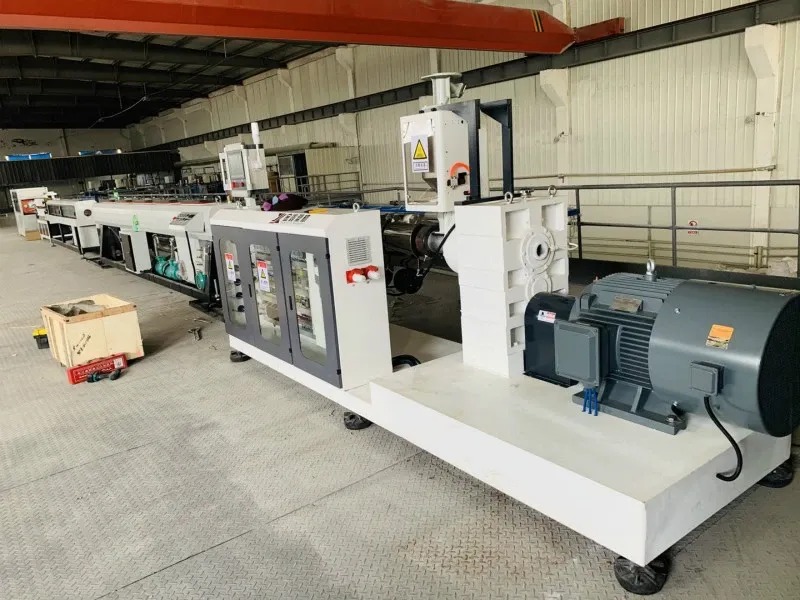

PPR Pipe Extrusion Machine

PPR Pipe Extrusion Machine

Materials: PPR | Single / multi-layer / reinforced variants / PE (Small to medium diameters only.)

Hot/cold water pipe production with gravity feeding and gravimetric control system.


View Machine Details

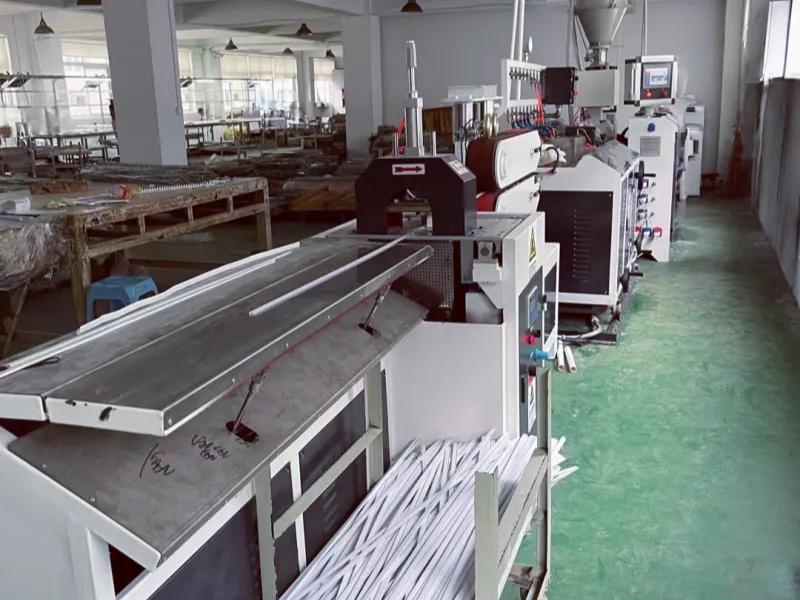

PVC profile extrusion line

Custom Profile Extrusion Line

Materials: PVC rigid + soft combinations, PVC, PP, PE, ABS, and TPU compounds

General-purpose profiles for construction, decoration, and industrial use


View Machine Details
lighting profile extrusion line

PC/PMMA Profile Extrusion Line

Materials: PC, PMMA | Optical/lighting profiles

LED lampshades and optical profiles with high-transparency mold design


View Machine Details

TPE Solutions

For elastic bands used in medical and fitness applications.

TPE extrusion lines in factory

TPE Elastic Band Extrusion Line

Materials: TPE | Elastic bands / tourniquets / resistance bands

Medical-grade TPE straps and fitness resistance bands.


View Machine Details

How We Configure Your Line

Every extrusion line is built-to-order. We size components based on:

Material

Pellet type, melt index, and any fillers or additives that affect screw design and heating zones

Product specifications

Dimensions, wall thickness, and tolerance targets

Voltage requirements

Local industrial power standards (3-phase, frequency, voltage)

Output targets

A realistic, stable production range based on material behavior, cooling capacity, and forming time — not just a theoretical maximum

Tooling needs

Custom die design and in-house mold manufacturing

What You Get with Every Jinxin Line

  • Factory Acceptance Test (FAT) — Full-load run verification before shipment, with recorded startup parameter sheets so your team doesn’t start from guessing
  • In-House Tooling Design — Custom molds manufactured and verified internally during FAT
  • Global Component Ecosystem — Siemens, ABB, Schneider, and selected Chinese brands with worldwide service networks
Plastic Extruder Machine with with spare parts is ready to be shipped to a customer.

Frequently Asked Questions

A plastic extruder machine is the core equipment that melts and shapes raw plastic into continuous products such as pipe, hose, tube, or profile.

It typically consists of a barrel, screw, drive system, heater zones, and die. The screw pushes molten plastic through the die to form the desired cross-section, which is then cooled and cut to length.

No. Every plastic extruding machine line is built to order.

For round pipes and hoses, we only need your dimensional data — inner diameter, outer diameter, and the wall thickness of each layer. (For multi-layer products like PVC braided hose or PPR fiber-reinforced pipe, each layer requires its own extruder and die, so we need the thickness for every layer.)

Custom profiles do require a drawing because of non-standard cross-sections.

We also match motor power and screw design to your material and a realistic, stable output range — not a theoretical maximum.

Our single screw extrusion lines process pellet or granule thermoplastics including PVC (pellet compound), PP, PE, PC, PMMA, ABS, TPU, and TPE. We do not process PVC dry blend/powder, which requires a twin-screw process.

Cost depends on the configuration level, downstream equipment scope, and tooling complexity — not just the extruder body alone.


As a general reference for FOB China pricing:

Basic / entry-level (minimal downstream, simple tooling): USD $12,000 – $25,000

Mid-range / production-grade (custom tooling, FAT-tested, full downstream): USD $28,000 – $60,000

High-end specialty (medical-grade cleanroom tubing or large-diameter pipe 400mm+): USD $60,000 – $200,000+

These ranges cover the complete extrusion line — extruder, die, cooling and calibration, haul-off, and cutting or coiling — but do not include optional add-ons such as inline printing or automated packaging.

A note on low-price listings: a standalone extruder barrel sells for under $3,000 on Alibaba. A complete, production-ready line configured for your specific product is a different product entirely.

The real cost of a cheap line shows up in commissioning failures, wasted material, and downtime — not the purchase price.

We provide a configuration-based quotation within 48 hours of receiving your product specs.

Every line ships with the following:

Factory Acceptance Test (FAT) documentation — run-test evidence and a documented startup parameter sheet (baseline speeds and temperatures) so your team starts from a proven setup instead of guessing

Practical wear parts kit — standard consumables based on actual replacement frequency, including cast aluminum heater bands, die heater bands, solid state relays (SSR), cooling fans, and K-type thermocouples. These are provided to support stable start-up and routine maintenance, not because of quality concerns

Core component warranty — 12 months for the complete machine (gearbox, screw, motor) and 18 months for the HMI touch screen, covering manufacturing defects under normal operation

Remote commissioning support — guidance to get the line running from our team. Optional on-site installation is available by arrangement

Standard manufacturing lead time is 45–60 working days. This covers fabrication, in-house tooling verification, and the full-load Factory Acceptance Test (FAT) run before dispatch.

Required Inputs for Quotation

Send us your product drawing/sample，and information below, We will recommend the right line scope and define FAT acceptance criteria before production.
