LDPE Lotion Pump Tube Extrusion Machine & Line — Dip Tubes for Aerosol, Perfume & Pump Sprayers

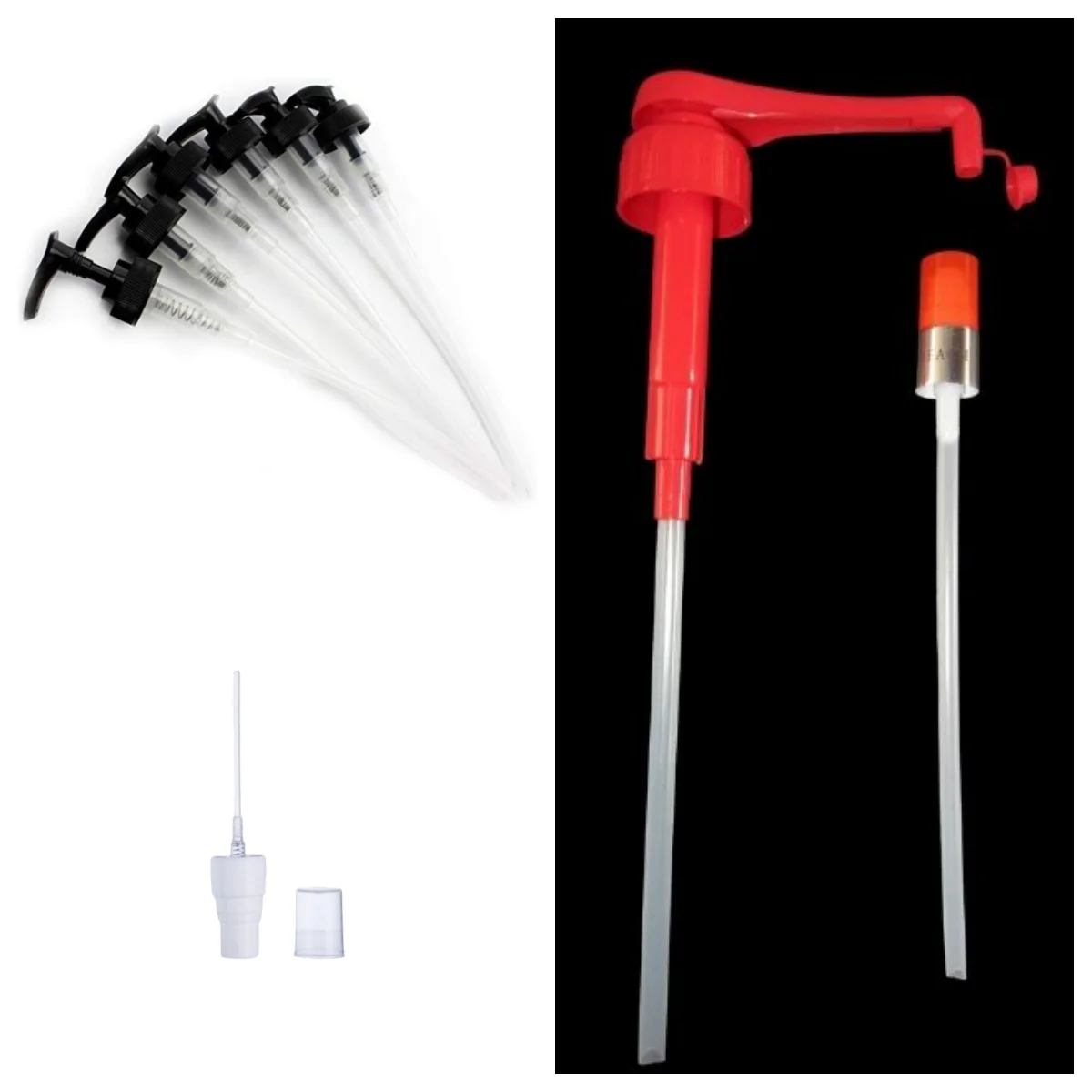

A precision LDPE lotion pump tube extrusion machine engineered for consistent OD control, uniform wall thickness, and clean cut-to-length performance — producing lotion pump, perfume pump, and aerosol dip tubes (also called lotion pump straws or perfume atomizer tubes) for high-speed packaging assembly lines.

  • Optimized Screw Design: Custom-configured for LDPE/PP resins to ensure stable melt pressure and uniform wall thickness.
  • Precision Vacuum Sizing: Leak-proof vacuum system ensuring superior tube roundness and OD stability within ±0.05mm.
  • Integrated Air-Knife System: High-efficiency air-wiping channel removes water droplets to ensure bone-dry tube surfaces and slip-free traction.
  • Configuration-Based Output: Scalable extruder and motor specifications tailored to meet your specific kg/h production targets.
  • Plug-and-Play Installation: Modular hardware design with aviation connectors for rapid, independent setup without on-site engineers.

Modular Configuration for Precision Dip Tube Production

Our precision dip tube extrusion machine lines are custom-configured for aerosol, perfume, and lotion pump applications. Supporting both LDPE and PP materials, this system ensures stable, high-quality output for small-diameter packaging tubes.

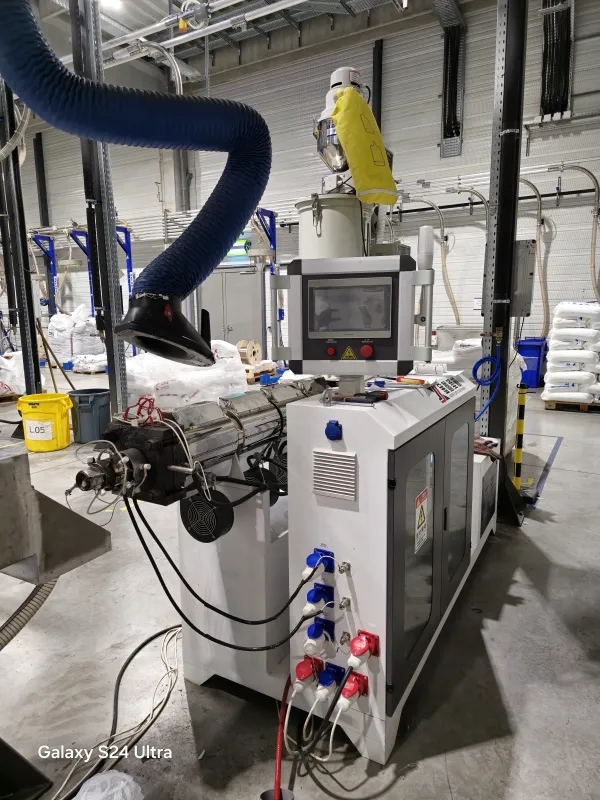

Main extruder of PP PE dip tube extrusion machine line
Extrusion Core

Precision Single Screw Extruder

  • Motor: Siemens Beide (Inverter Duty)
  • Drive: Direct Coupling (No Belts, Maintenance-Free)
  • Inverter: ABB ACS580 High Performance
  • Control: WECON PLC + Touch Screen
  • Screw: Nitrided Steel (Depth: 0.6-0.8mm)
  • Heating: FOTEK SSR Control
  • Optimized screw geometry for stable LDPE/PP melt pressure
High-Stability Extrusion Die Head of dip tube extrusion machine
Precision Die

High-Stability Extrusion Die Head

  • Material: High-Quality Die Steel (Polished Flow Channel)
  • Design: Specialized for Thin-Wall Dip Tubes
  • Changeover by tooling set (multi-size support).
Vacuum Calibration Tank
PRECISION SIZING

Vacuum Cooling Water Tank

  • Material: SUS304 Stainless Steel
  • Vacuum: Water-pump type for stable negative pressure
  • Stability: Integrated Pressure Rollers to ensure tube immersion and stability
  • Alignment: 3-Axis Adjustable (Precise Centering)
  • Control: High-integrity sealing for consistent ±0.05mm OD control
Integrated Air-Wiping System
MOISTURE REMOVAL

Air-Knife System

  • Design: 360° Circular Air-Wiping Channel
  • Function: High-velocity moisture stripping before traction
  • Benefit: Eliminates Traction Slippage
  • Result: Ensures bone-dry surface for precision cutting

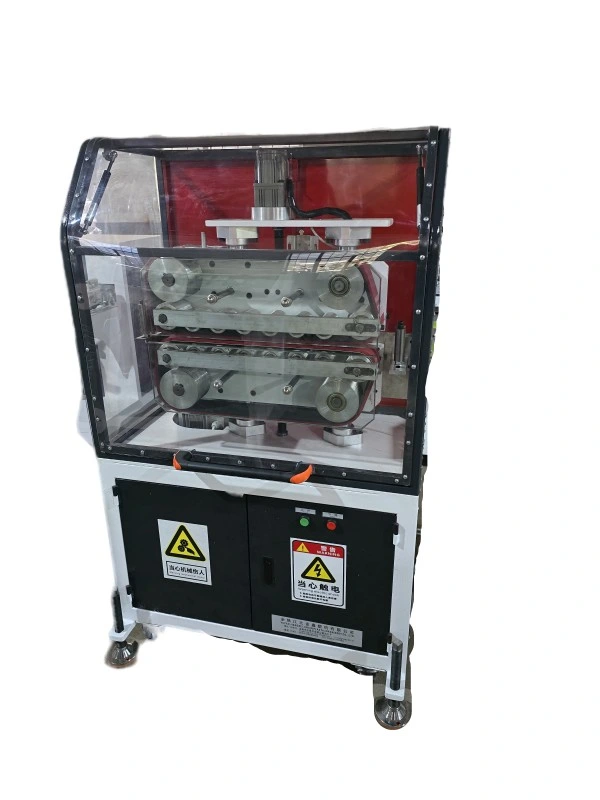

Belt Haul-off for dip tube extrusion machine
STABLE TRACTION

Precision Haul-off Options

  • Standard: Compact 4-Roller Pinch System (Ideal for standard rigid dip tubes)
  • Upgrade: Belt-type (Caterpillar) Haul-off for high-precision European standards
  • Benefit: Surface contact prevents thin-wall deformation and ensures less-slip stability
  • Sync: Closed-loop synchronization with extruder speed for consistent OD

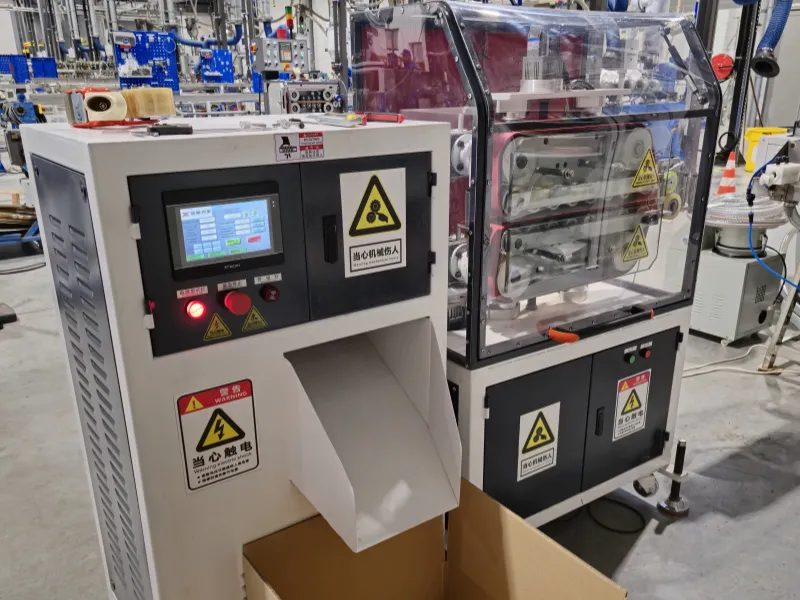

haul off machine and cutter of dip tube extrusion machine line
HIGH-PRECISION CUTTING

Delta Servo Cutting System

  • Drive: 1KW Delta Servo Motor & Driver
  • Control: 7-inch Touch Screen (CN/EN/FR Tri-lingual System)
  • Precision: Encoder-based length measurement with counting & alarm
  • Versatility: Supports Square, V-shape, and Slanted (Angled) cuts
Dual-Shaft Winder
FLEXIBLE COILING

Horizontal or Dual-Shaft Winder

  • Horizontal: For ultra-fine or soft tubes (prevents crushing and deformation)
  • Dual-Shaft: For high-efficiency, continuous winding of standard dip tubes
  • Feature: Magnetic Powder Clutches for precise, constant tension control
  • Feature: Integrated Traversing Unit for neat, organized layer-winding
  • Custom: Reel sizes and spindle diameters tailored to your packaging needs
Industrial chiller
RECOMMENDED AUXILIARY

Industrial Water Chiller

  • Function: Closed-Loop Water Cooling System
  • Advantage: No Civil Water Pool Needed
  • Install: Plug-and-Play Design
  • Reliability: Stable temperature for consistent tube sizing

Ready to Configure Your Dip Tube Extrusion Machine Line?

For quick questions or general price ranges, feel free to use the Quick Contact Sidebar on the right (or bottom on mobile).
However, for a precise configuration-based quotation and factory layout drawing, we recommend providing your specific requirements.

Go to Detailed Request Form ↓

Why Manufacturers & Procurement Leaders Choose Jinxin

Factory-Accepted Before Shipping

We don’t just check mechanical movement—we run full-load production trials before shipment.

  • Dimensional Verification: We run the line to prove the mold delivers your exact pipe dimensions and tolerances.
  • The “Start-Up Recipe”: We record the successful processing parameters (temperatures, speeds) used during the trial. You receive this Data Sheet to skip the guesswork and start production immediately.
  • Material Calibration: Using special material? We recommend shipping your raw material to us for testing. We calibrate the machine to your reality, ensuring precision from start.

Transparent, Line-by-Line Quoting

Your quotation isn’t a vague summary. It is a line-by-line manifest listing every equipment component and brand (e.g., Siemens, ABB), ensuring the hardware matches the promise.

  • Detailed Configuration List: Every motor, inverter, tank, and controller is listed by brand and model.
  • Clear Service Options: On-site installation and training are quoted as a distinct, transparent line item—no surprise fees later.
  • The “Final” Price: No hidden add-ons. What you sign is what you pay.

Global-Service Component Strategy

We strictly implement a “Service-Ready” Component Strategy to ensure your supply chain security.

  • Tier 1 Global Giants: For core drives and motors, we use Siemens, ABB, RKC and Omron—available in almost any industrial city worldwide.
  • Proven International Brands: For controls and electrics, we select brands like WECON and CHINT, which have established distributor networks across major markets.
  • Result: Whether it’s a premium drive or a standard relay, verified quality and convenient maintenance are guaranteed.

Trust Credentials

60% Global Repurchase Rate

A majority of our international clients expand their capacity with us — an indicator of long-term reliability.

CE Certified & Tax-Saving Support

We configure the line to meet your target pipe standards (e.g., ISO 15874) upon request. We also provide Certificate of Origin to help minimize your import duties.

What Our Clients Say

  • We run extrusion lines from multiple suppliers, but Jinxin’s 360° air-knife was clearly the best moisture-removal design we had seen. We ended up ordering additional air-knife units from them to retrofit onto our existing production lines. It solved a residual-water problem that had been causing cut-quality issues for months.
    Main extruder of PP PE dip tube extrusion machine line
    packaging manufacturer owner
    France
  • We needed V-cut dip tubes with a specific angle for our perfume pump assembly line. Jinxin built the custom cutter head exactly to our specification, and the cut quality has been consistent from day one. Every tube fits the pump fitting without rework.
    dip tube extrusion machine line in customers place
    Dip Tube Manufacturer owner
    Thailand

FAQ:— Lotion Pump & Dip Tube Extrusion Machine

LDPE and PP are the primary materials for this line. The screw geometry, compression ratio, and heating zones are optimized specifically for these resins to ensure stable melt pressure and uniform wall thickness.

If you need to process a different material, let us know during the configuration phase — we evaluate material compatibility before quoting, rather than promising a “universal” machine.

The line handles small-diameter tubing typically in the 3–10 mm OD range (exact range depends on die tooling). The leak-proof vacuum calibration system maintains ±0.05 mm OD tolerance with uniform wall thickness across production runs.

We verify this tolerance during FAT with your specific material before shipment.

Yes. Our servo-driven rotary cutter supports square, V-shape, and slanted (angled) cuts. However, the machine ships with one standard cutting head — you need to specify your cut profile and V-angle requirements before we configure the line.

We manufacture and install the custom cutting head during production, then verify the cut geometry during FAT using your actual material. If your product range requires multiple cut types, we can discuss a quick-change tooling setup.

Both options are available:

  • Independent setup: Modular design with aviation connectors. We ship the machine with FAT-tested preset parameters, test videos, and full documentation. Experienced teams can commission without on-site support.
  • On-site support: If your team is new to extrusion or this is your first line, our engineers provide installation, commissioning, and operator training. Costs are itemized in the quotation — no hidden fees.

Every Jinxin dip tube extrusion line ships with a standard spare parts kit — all wear items, ready for immediate commissioning and routine maintenance. No separate purchase needed:

  • Cast-aluminum heater bands for the screw barrel × 2
  • Die head heater bands × 2 sets
  • Solid-state relays (Fotek / Taiwan Yang Ming) × 5 — the most failure-prone item on the line
  • Cooling fan × 1
  • K-type thermocouples × 2


This kit covers the typical consumables for the first 12–18 months of normal operation. For long-term replenishment, all core components (Siemens, ABB, Delta, Fotek, WECON, CHINT) are global brands with local distributor networks — replacements are sourced locally in your country, not shipped from China.

Drives, servo motors, PLCs, and HMI are not wear items — they run for the full lifetime of the line.

The root cause of assembly rejects is dimensional drift during extrusion — not just average OD, but ovality and micro-variations along the tube length. If the OD is even slightly undersized or out-of-round, the tube lacks the interference fit needed to seal inside the pump head. If oversized, it will not insert at all.

We control this through two upstream mechanisms, not end-of-line inspection:

  • Vacuum Sizing Tank: The leak-proof vacuum system holds the molten tube against the calibration sleeve under stable negative pressure, ensuring roundness and holding OD/ID within ±0.05 mm across the production run.
  • 360° Air-Knife Channel: Strips all surface moisture before the tube reaches the haul-off unit. This eliminates micro-slippage in the traction rollers — a common cause of intermittent stretching that creates diameter variation downstream.


The result is a tube that is consistently round and dimensionally stable, so it seats reliably in automated assembly equipment without fall-off or leakage.

Lead time: 50–60 working days from deposit, including mechanical fabrication, electrical assembly, PLC programming, and full-load FAT with documented startup parameters. Special configurations may extend this — your quotation states the exact timeline.

Warranty: 12 months full-line coverage; HMI touchscreen extended to 18 months. Tier-1 components (Siemens, ABB) carry their own manufacturer warranties.

Packing: Fumigation-free wooden crates with anti-rust treatment and moisture-proof film. The stainless-steel cooling tank ships separately on a steel pallet due to size.
