Dip Tube Extrusion Machine for Aerosol Valves & Pump Sprayers

High-stability LDPE/PP extrusion line engineered for consistent OD/ID control and precision cut-to-length performance in high-speed packaging environments.

  • Optimized Screw Design: Custom-configured for LDPE/PP resins to ensure stable melt pressure and uniform wall thickness.
  • Precision Vacuum Sizing: Leak-proof vacuum system ensuring superior tube roundness and OD stability within ±0.05mm.
  • Integrated Air-Knife System: High-efficiency air-wiping channel removes water droplets to ensure bone-dry tube surfaces and slip-free traction.
  • Configuration-Based Output: Scalable extruder and motor specifications tailored to meet your specific kg/h production targets.
  • Plug-and-Play Installation: Modular hardware design with aviation connectors for rapid, independent setup without on-site engineers.

Modular Configuration for Precision Dip Tube Production

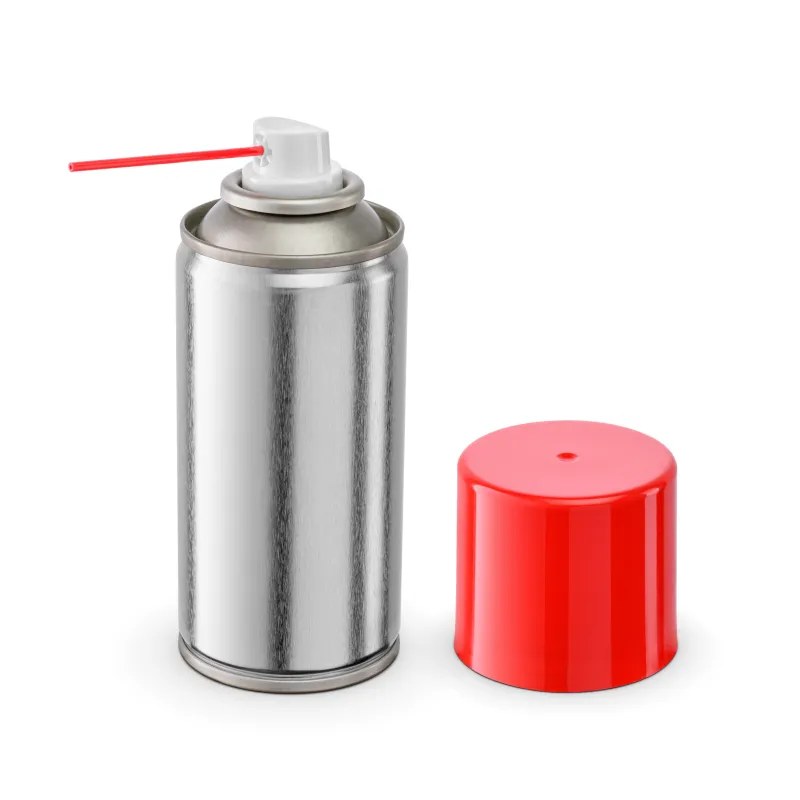

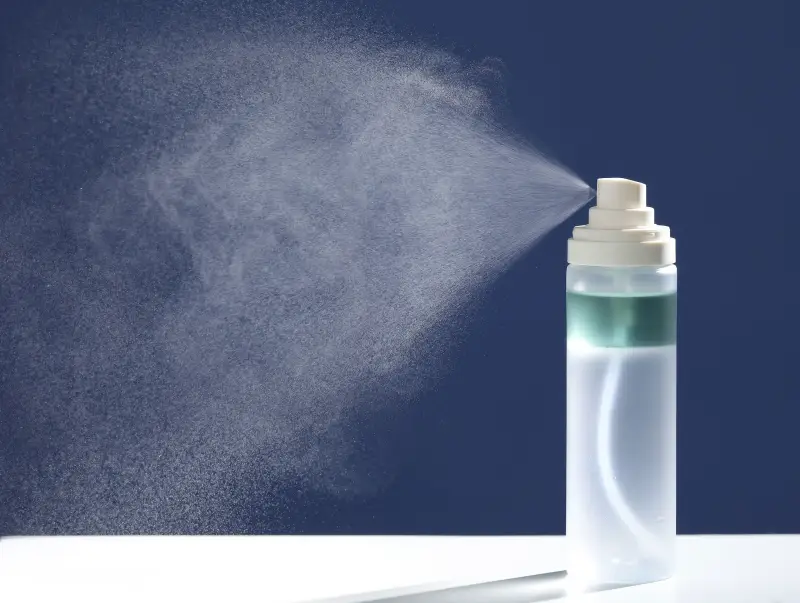

Our precision dip tube extrusion machine lines are custom-configured for aerosol, perfume, and lotion pump applications. Supporting both LDPE and PP materials, this system ensures stable, high-quality output for small-diameter packaging tubes.

Main extruder of PP PE dip tube extrusion machine line
Extrusion Core

Precision Single Screw Extruder

  • Motor: Siemens Beide (Inverter Duty)
  • Drive: Direct Coupling (No Belts, Maintenance-Free)
  • Inverter: ABB ACS580 High Performance
  • Control: WECON PLC + Touch Screen
  • Screw: Nitrided Steel (Depth: 0.6-0.8mm)
  • Heating: FOTEK SSR Control
  • Optimized screw geometry for stable LDPE/PP melt pressure
High-Stability Extrusion Die Head of dip tube extrusion machine
Precision Die

High-Stability Extrusion Die Head

  • Material: High-Quality Die Steel (Polished Flow Channel)
  • Design: Specialized for Thin-Wall Dip Tubes
  • Changeover by tooling set (multi-size support).
Vacuum Calibration Tank
PRECISION SIZING

Vacuum Cooling Water Tank

  • Material: SUS304 Stainless Steel
  • Vacuum: Water-pump type for stable negative pressure
  • Stability: Integrated Pressure Rollers to ensure tube immersion and stability
  • Alignment: 3-Axis Adjustable (Precise Centering)
  • Control: High-integrity sealing for consistent ±0.05mm OD control
Integrated Air-Wiping System
MOISTURE REMOVAL

Air-Knife System

  • Design: 360° Circular Air-Wiping Channel
  • Function: High-velocity moisture stripping before traction
  • Benefit: Eliminates Traction Slippage
  • Result: Ensures bone-dry surface for precision cutting
Belt Haul-off for dip tube extrusion machine
STABLE TRACTION

Precision Haul-off Options

  • Standard: Compact 4-Roller Pinch System (Ideal for standard rigid dip tubes)
  • Upgrade: Belt-type (Caterpillar) Haul-off for high-precision European standards
  • Benefit: Surface contact prevents thin-wall deformation and ensures less-slip stability
  • Sync: Closed-loop synchronization with extruder speed for consistent OD
haul off machine and cutter of dip tube extrusion machine line
HIGH-PRECISION CUTTING

Delta Servo Cutting System

  • Drive: 1KW Delta Servo Motor & Driver
  • Control: 7-inch Touch Screen (CN/EN/FR Tri-lingual System)
  • Precision: Encoder-based length measurement with counting & alarm

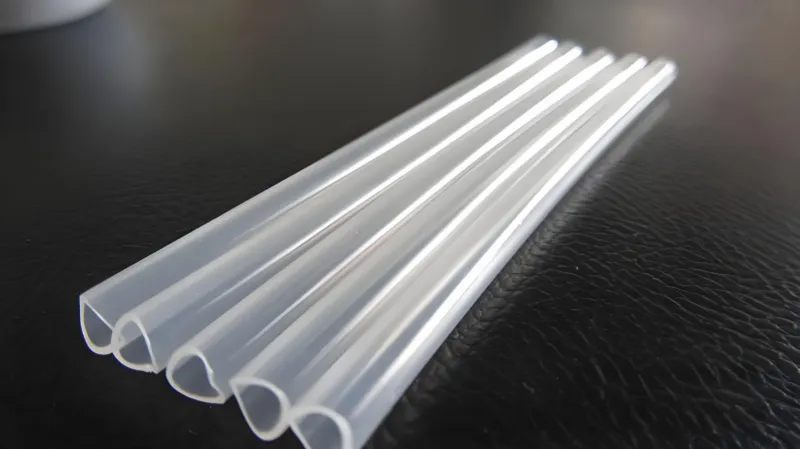

  • Versatility: Supports Square, V-shape, and Slanted (Angled) cuts
Dual-Shaft Winder
FLEXIBLE COILING

Horizontal or Dual-Shaft Winder

  • Horizontal: For ultra-fine or soft tubes (prevents crushing and deformation)
  • Dual-Shaft: For high-efficiency, continuous winding of standard dip tubes
  • Feature: Magnetic Powder Clutches for precise, constant tension control
  • Feature: Integrated Traversing Unit for neat, organized layer-winding
  • Custom: Reel sizes and spindle diameters tailored to your packaging needs
Industrial chiller
RECOMMENDED AUXILIARY

Industrial Water Chiller

  • Function: Closed-Loop Water Cooling System
  • Advantage: No Civil Water Pool Needed
  • Install: Plug-and-Play Design
  • Reliability: Stable temperature for consistent tube sizing

Ready to Configure Your Dip Tube Extrusion Machine Line?

For quick questions or general price ranges, feel free to use the Quick Contact Sidebar on the right (or bottom on mobile).
However, for a precise configuration-based quotation and factory layout drawing, we recommend providing your specific requirements.

Go to Detailed Request Form ↓

Why Global Packaging Manufacturers Trust Jinxin for Dip Tube Production

The biggest risk in dip tube production is size fluctuation, which leads to assembly line rejects. We mitigate this through a dual-control system: our leak-proof vacuum tank ensures a stable OD/ID tolerance of ±0.05mm, while our integrated air-knife channel strips all moisture before the tube reaches the traction unit.

This eliminates micro-slippage, ensuring every tube is perfectly round and consistent for high-speed automated assembly.

We offer flexible options based on your team’s experience level to ensure a smooth start-up:
Option 1: Professional On-site Support. If you are setting up a new production line or lack extrusion experience, our engineers can provide on-site installation, commissioning, and staff training. All associated costs are clearly stated in your quotation—no hidden fees.
Option 2: Independent “Plug-and-Play” Setup. For experienced teams, our modular design with aviation connectors allows for independent installation. Every line undergoes a full Factory Acceptance Test (FAT) before shipment. We provide you with the exact preset parameters, testing videos, photos, and comprehensive manuals, enabling you to replicate the production results in your own facility.

Risk: Production Stoppage

Solution: We strictly implement a “Service-Ready” Component Strategy to ensure your supply chain security.

  • Tier 1 Global Giants: For core drives and motors, we use Siemens , ABB, RKC and Omron. You can find replacements in almost any industrial city worldwide.
  • Proven International Brands: For controls and electrics, we select brands like WECON and CHINT. These are not obscure local parts; they are successful global exporters with established distributor networks and local support branches across major markets.
  • Result: Whether it’s a premium drive or a standard relay, verified quality and convenient maintenance are guaranteed.

Yes. We understand that different aerosol and lotion systems require specific suction profiles. Our servo-driven rotary cutter is highly versatile; we can customize the cutting head to produce V-shape, slanted (angled), or standard square cuts based on your product drawings.

We verify these custom cuts during the Factory Acceptance Test (FAT) using your specific material before the machine is shipped.

Supplier to Global Leaders

Jinxin extruders operate inside the factories of top international groups. We pass their rigorous Vendor Audits—bringing enterprise-grade reliability to your plant. (Client names protected by NDA).

Factory Direct

No middlemen. We own the Software Source Codes & Mechanical Drawings, ensuring lifetime support for upgrades.

CE Certified & Tax-Saving Support

CE Certified equipment. We configure the line to meet your target standards upon request. We also provide Certificate of Origin to help minimize your import duties.

Dedicated to Single Screw Extrusion Since 2012

Jinxin focuses exclusively on single-screw technology. This specialized focus allows us to refine machine stability and output efficiency to the absolute highest standard across our entire range of extrusion lines.

We deliver enterprise-grade equipment that passes the rigorous audits of international groups. Whether you are a startup or an industry giant, we combine precision engineering with factory-direct value, empowering your production to scale without compromise.

20+ Countries
Export Destinations
100+ Lines
Running Successfully Worldwide
14+years
Focused on Single Screw Extrusion
