Extrusion-Grade Supply • One-Stop Support

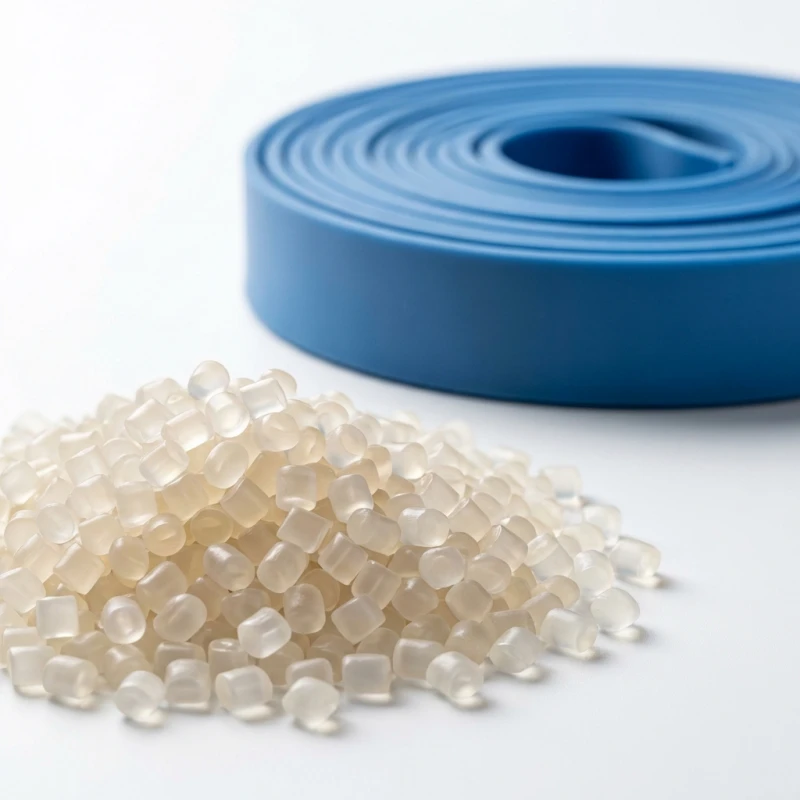

Thermoplastic Elastomer Compounds (TPE) – Extrusion Grade Pellets
Need a stable TPE compound for extrusion? Jinxin supplies formulated thermoplastic elastomer pellets for elastic extrusion products—especially sheet/strip and band extrusion, including transparent projects.
One-stop extrusion support: equipment + proven compound recommendation, coordinated by one team.
What a “TPE Compound” Means & Where We Fit
On this page, “TPE compound” refers to formulated thermoplastic elastomer delivered in pellet form, ready to feed into a single-screw extruder.
Our Validated Scope:
- Standardized for Bands: For sheet/strip and elastic bands, we use proven formulations ready for immediate production.
- Custom for Profiles: For tubing and complex profiles, geometry and tooling vary. We recommend a case-by-case evaluation or small trial to ensure precise dimensions.
Why One-Stop Matters for Elastic Extrusion Products
The Formulation Challenge
In SEBS-based TPE compounds, performance is driven by a delicate formulation balance—polymer backbone, oil loading, and filler package.
- Too much filler (e.g., CaCO₃) can raise hardness and reduce stretch, making the product feel “dead” or brittle.
- Insufficient oil reduces elasticity, while excessive oil creates surface tack and migration risks.
The “Hidden Cost” of Generic Material
If a sample feels unusually hard with limited elongation, it is often a sign of a cost-driven formulation where elasticity and snap-back recovery are sacrificed. This leads to production headaches: surging, die swell instability, and products that fail tension tests.
The Jinxin Advantage
By aligning machine setup with a proven compound, we help you reduce unnecessary trial-and-error during startup.
We focus on extrusion-grade formulations that maintain a workable balance for elastic products—ensuring the right elastic recovery and surface feel (matte/dry) straight out of the die.
- Less Debugging: Start with parameters that match the material.
- Unified Support: Don’t troubleshoot between two suppliers.
This is why we match the grade to your specific feel and recovery target, not just a Shore hardness number.
Validated Extrusion Applications (Current Focus)
Band & Sheet Grade
(Proven in Repeat Production)
Typical Products:

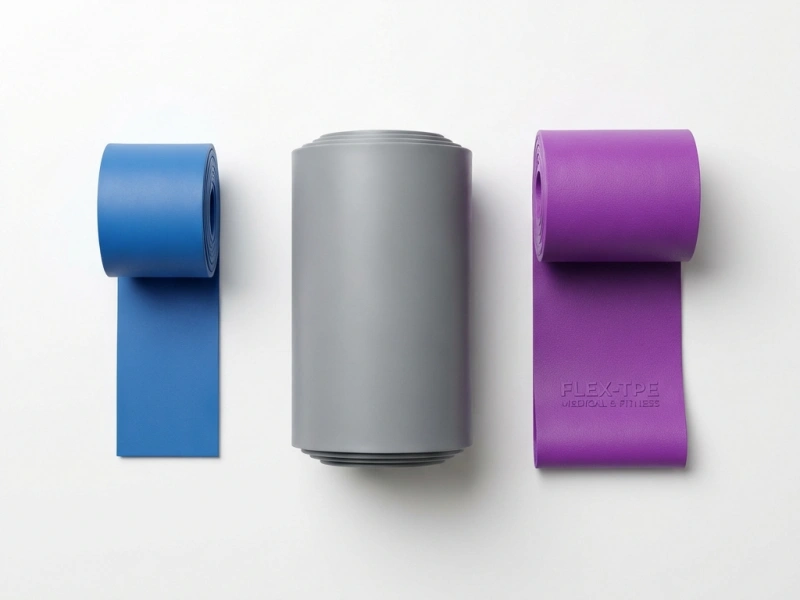

Tourniquet-style bands, Esmark-style bands, Resistance/Yoga bands.
What We Match:
Target feel and recovery behavior (Snap-back).
Surface requirement (Dry-touch vs. Tacky).
Shore A hardness target.
Tubing & Profiles
(Project-Based Evaluation)
Typical Products:
Flexible tubing, sealing strips, soft profiles.
Evaluation Service:
Profile extrusion depends heavily on die swell and cooling. We evaluate suitability based on your:
Cross-section drawing & Wall thickness.
Tooling design & Cooling method.
Technical Data Sheet: Medical-Grade SEBS TPE for Tourniquets & Bands
The following Technical Data Sheet (TDS) details the properties of our medical-grade SEBS-based TPE compound, specifically formulated for the production of tourniquets, Esmark bands, and other medical bandages.
Category | Properties | Values/Description |
|---|---|---|
General Info | Product Description | A soft, colorable SEBS based thermoplastic elastomer (TPE) compound designed for use in medical applications. Capable of sterilization with steam at 134°C, Gamma (25KGy/50KGy) and EtO. |
Material Status | Active | |
Form | Pellets | |
Appearance | Natural | |
Processing Method | Extrusion | |
Availability | Europe; North America; Asia-Pacific; Africa & Middle East | |
Physical | Density | 0.89 g/cm³ |
Durometer Hardness (Shore A, 3 sec) | 80 | |
Shrinkage – Flow | 2.33% | |
Shrinkage – Across Flow | 1.17% | |
Mechanical | Tensile Strength at Break | 1740 Psi |
Elongation at Break | 900.00% | |
Mod. of Elasticity 100% | 537 Psi | |
Mod. of Elasticity 300% | 812 Psi | |
Tear Resistance | 342.61 lbf/in | |
Compression Set (73°F, 22h) | 26.00% | |
Compression Set (158°F, 22h) | 46.00% | |
Compression Set (212°F, 22h) | 70.00% | |
Compliance | Features | Ozone Resistance; Adhesion to Polyolefins; Recyclable; Compliant with RoHS Directive 2011/65/EU; Compliant with USP Class VI Requirements |
Certification | RoHS |
Get a Quote & TDS for Your Extrusion Project
Send your product type, dimensions, and feel/recovery target. Jinxin will coordinate the compound recommendation to help you start with fewer material variables.
