High-Precision Dip Tube Extrusion Machine

Engineered for excellence, our machine produces flawless LDPE/PP dip tubes for pumps and sprayers, ensuring reliability and efficiency in your packaging solutions.

solicitar un presupuesto

Calculate Your ROI of Dip tube extrusion machine

Formulario de contacto
Samples produced by dip tube extrusion machine

Mastering Dip Tube Production: Inside Our Extrusion Technology

For businesses requiring high-quality dip tubes for packaging, understanding the right manufacturing equipment is key. This section delves into how our Dip Tube Extrusion Machine delivers the precision, consistency, and efficiency you need.

We focus on straightforward benefits: durable machinery that produces exact-spec tubes, minimizing waste and maximizing your output of market-ready products. Explore the components that make our solution a smart investment.

PLC system plastic extruding machine

Precision Single Screw Extruder: Consistent Melt Delivery

The core of dip tube extrusion machine line, this extruder is specifically optimized for LDPE and PP.

These polymers are chosen for their excellent properties in producing durable and precise dip tubes.

Our extruder design ensures uniform melting and stable output of these materials, which is critical for thin-walled applications, and promotes excellent plasticization for consistent material flow.

matriz y cabezal de extrusión de tubos

Specialized Die Head & Tooling: Forming Flawless Tubes

Our custom-designed die head and precision tooling are engineered for the small diameters and tight tolerances required for dip tubes.

This ensures accurate tube dimensions, smooth surfaces, and consistent wall thickness, vital for pump and sprayer functionality.

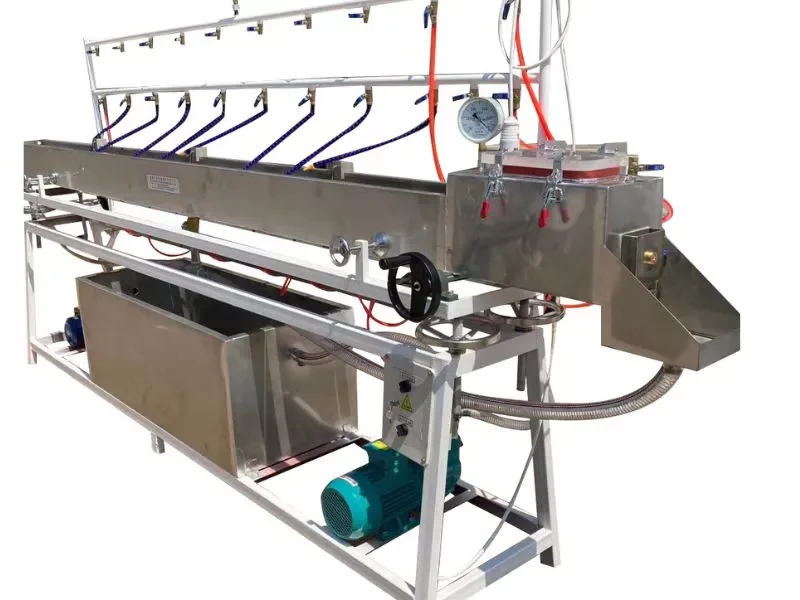

depósito de agua al vacío

Vacuum Sizing & Cooling Tank: Solidifying Perfection

An efficient vacuum sizing and water cooling system quickly stabilizes the extruded tube, ensuring it maintains its precise circular shape and diameter.

This is crucial for producing high-quality, straight dip tubes ready for assembly.

equipos de fabricación de tubos pp pe dip

Stable Belt Haul-Off: Gentle & Accurate Traction

The belt-type haul-off unit provides smooth, consistent pulling force, perfectly synchronized with the extruder.

This prevents distortion of the delicate dip tubes and maintains uniform dimensions throughout the production run.

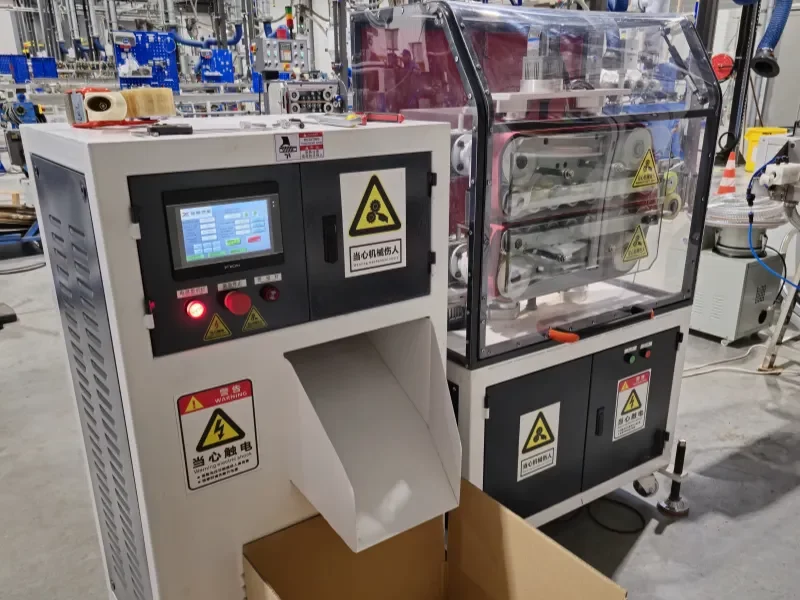

haul off machine and cutter of dip tube extrusion machine line

High-Speed Precision Cutter: Clean Cuts, Every Time

Our cutting unit is designed for high-speed, accurate cutting of small diameter tubes, delivering clean, burr-free ends.

This ensures the dip tubes are ready for immediate use in assembly without further processing.

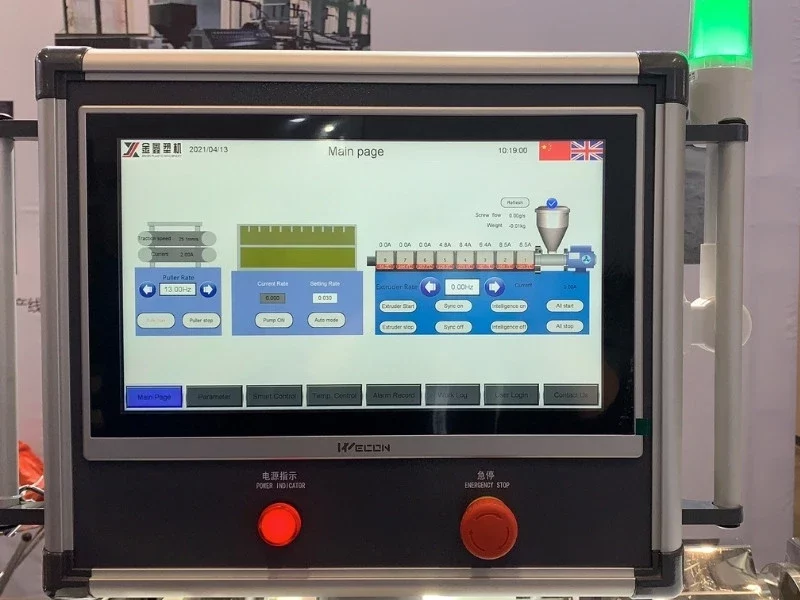

Interfaz de control inteligente

User-Friendly PLC Control System: Effortless Operation

The entire line is managed through an intuitive PLC control system with a touchscreen interface and multi language system.

It allows for easy parameter setting, real-time process monitoring, and quick adjustments, simplifying operation and maximizing uptime.

Precisión y cuidado en cada detalle

pequeño soplador de aire

Our dip tube extrusion machine reflects a high level of professionalism and thoughtful design, particularly with the addition of a small air-blowing device at the end of the water tank. Positioned just before the pipes enter the haul-off unit, this feature rapidly dries any residual water, ensuring the pipes are moisture-free.

Esto sirve para dos propósitos clave: mejora la forma final del tubo para una calidad superior, y evita que el agua gotee sobre el suelo de la fábrica, reduciendo el riesgo de resbalones y manteniendo un espacio de trabajo más seguro y limpio. Este pequeño pero impactante detalle subraya nuestro compromiso con la precisión y la atención a las necesidades de nuestros clientes.

China extrusora monohusillo fabricante Fábrica puerta

Calidad probada

Más de una década de experiencia y los comentarios de nuestros clientes garantizan que nuestras máquinas seleccionadas ofrezcan durabilidad a largo plazo y un rendimiento fiable.

línea de extrusión de manguera de fibra trenzada

Valor excepcional

Proporcionamos equipos de alta calidad a precios competitivos, maximizando su inversión con un rendimiento de primer nivel.

plastic extruding machine manufacturers are participating in the ChinaPlas 2019 Guangzhou

Asistencia fiable

La asistencia y el servicio integrales garantizan un funcionamiento sin problemas y un tiempo de inactividad mínimo, manteniendo una productividad óptima.

Nuestros clientes opinan

Nuestros increíbles proveedores

proveedores de extrusoras monohusillo-logo

Your Questions Answered: Dip Tube Extrusion Machine

Puede ayudarle a saber más

What is the typical range of diameters and tolerances your Dip Tube Extrusion Machine can achieve? This is critical for our pump assembly.

Our machine is specifically designed for small diameter tubes, typically ranging from 1.5mm to 8mm OD (Outer Diameter), with excellent tolerance control, often within +/- 0.1mm, depending on the material and tube size.

We understand precise fitment is crucial, and our system is built to deliver that consistency for seamless integration with your pump and sprayer mechanisms.

Switching between LDPE and PP is straightforward. While some purging will be necessary, our screw and die head design facilitates efficient material changeover. We provide clear guidelines for this process.

Performance remains optimal for both materials, as the machine’s heating profiles and screw geometry are designed to handle their specific processing characteristics effectively.

Tube straightness is a key focus. Our system ensures this through a combination of factors: optimized die design for even material flow, precise and stable vacuum sizing that correctly forms and supports the tube during cooling, and a properly aligned haul-off and cutting system.

This minimizes internal stresses that can lead to bending, ensuring you receive straight tubes ready for hassle-free assembly.
