The Definitive Guide To TPE Overmolding: A Proven Framework To Stop Delamination

For any company working with advanced polymers, solving challenges in TPE overmolding is critical for creating high-quality, durable products. While our own story began in TPE extrusion, that deep experience with the polymer led us directly to this challenge. Our extrusion clients, manufacturers of products like TPE tourniquets and resistance bands, consistently asked for our help sourcing better raw materials. They knew that to prevent defects like delamination, the machine is only one part of the equation; the material itself is paramount.

To answer that, we went on a mission for our extrusion clients. We rigorously tested and vetted numerous TPE suppliers, searching for a partner who met our own high standards for quality, consistency, and technical innovation. We found that partner. Their materials were a game-changer for our clients, elevating their product quality and process stability. A powerful partnership was born.

As we worked closer with this supplier, we discovered their expertise extended far beyond extrusion. They possessed a world-class research and development team dedicated to solving the most complex challenges in injection molding, with a particular mastery over TPE overmolding.

This discovery sparked a new chapter for our business. We realized the same exceptional TPE quality we brought to our extrusion clients could solve critical problems for injection molders. Today, we are proud to launch our new business division, offering these high-performance TPE compounds to the injection molding market.

To prove it, we are tackling one of the most persistent issues in the industry: the delamination of TPE from ABS substrates. This guide is our introduction. It is built entirely on the proven framework of our material partner. We are here to show you that our materials are not just for extrusion; they are your solution for flawless TPE overmolding ABS parts.

The Diagnosis: Our Partner's Deeper Framework for Analyzing TPE/ABS Delamination

When a TPE overmolding project fails, the immediate cause is always a breakdown in adhesion. But to solve it permanently, you must diagnose the root cause. Through our partnership, we’ve gained direct insight into how their material scientists approach this problem. They use a systematic framework to analyze every potential point of failure. The following is their diagnostic process, enriched with technical details from their R&D team, which consistently isolates the source of delamination.

A) Formulation & Compatibility Factors: The Core Molecular Science

The first question our partner’s technical team asks is always about material compatibility. According to their experts, this is the non-negotiable foundation.

The Polarity Problem: Their material scientists explain that at a molecular level, standard SEBS (the polymer backbone of many TPEs) is a non-polar material. ABS, conversely, is a weakly polar material. Without advanced modification, these two materials have no natural chemical affinity and will not bond effectively.
The Engineered Solution: Their specialized TPE grades for ABS are not standard SEBS. They are advanced compounds where the formulation has been re-engineered, often by adding polar components like TPU or using grafted SEBS, to create that essential chemical attraction to the ABS substrate. This approach of chemically modifying a polymer to bond with another is a core principle of material science, a topic covered in-depth by authoritative industry resources like SpecialChem’s guide on polymer adhesion.

B) Material Quality & Purity: The Common Contaminants

Even with a perfectly compatible formulation, success can be derailed by contamination or poor material integrity. Our supplier consistently points to several factors that can ruin an otherwise perfect TPE overmolding bonding process:

Moisture & Volatiles: The Two-Way Threat. Their data shows that drying is non-negotiable for both materials.
- On the ABS Substrate: As articles in Plastics Technology magazine confirm, hygroscopic ABS must be properly pre-dried. Any surface moisture will flash to steam upon injection, creating a vapor barrier that prevents the bond.
- In the TPE Pellets: Their lab analysis also shows that TPE pellets can contain trace moisture, solvents, or other low-molecular-weight volatiles from the manufacturing process. During injection, these also turn to gas and interfere with adhesion.
External Contamination: Their technicians stress that mold release agents are a primary suspect in any delamination investigation. Any residue on the ABS part from the first shot acts as a barrier film. The same applies to oils, grease, or fingerprints.
TPE Material Integrity: Beyond just bonding, they advise checking the TPE’s own physical properties. A low-quality TPE might bond initially but then crack during use due to insufficient tensile strength or tear resistance, which can be mistaken for a bond failure.

C) Molding Process Factors: The In-Machine Variables

The injection process is where material science is put into practice. Our partner provides clear guidance on the critical process parameters. Failure to control these can lead to two distinct types of failure: immediate delamination or delayed stress cracking.

Low Injection Temperature: This is the most common process issue. Their R&D team recommends a melt temperature high enough (typically 160-200°C) to re-melt the very outer surface of the ABS substrate. This “surface activation” is critical for the chemical bond to form. If the TPE is too cold, it’s like trying to glue something to ice.
Stress Cracking: Their engineers warn that improper process settings can induce high internal stress in the part. This might not be visible immediately after molding. Instead, small cracks can appear hours or even days later as the stress relaxes. Proper cooling and holding pressure are key to preventing this.
Injection Pressure and Speed: These parameters must be balanced. Too low, and the materials may not have enough intimate contact. Too high, and you can create excess stress or even damage the substrate.
Part Geometry: The larger the area or thicker the TPE overmold, the longer the material must flow in the mold. This causes the melt front to cool significantly, making the bond weaker at the end of the flow path.

D) Other Factors: The Influence of Hardware & Design

Finally, our partner’s technical datasheets always include recommendations for the physical setup.

Mold Design: Their experts emphasize that for parts with large surface areas or complex geometries, mold design is critical. The goal is to minimize the time and distance the TPE melt has to travel. This can be achieved through smart design and, often, by adding multiple injection gates to ensure the entire part is filled quickly with optimally hot material.
Mechanical Interlocks: As a best practice, they always recommend incorporating design features like grooves, holes, or textures on the ABS part. This creates a physical anchor that works with the chemical bond, making the final product exceptionally robust.

The Solution: Our Partner's Proven Action Plan for a Perfect TPE-ABS Bond

Diagnosing the problem is critical, but solving it is what matters. Based on the framework above, our partner has developed a clear, systematic action plan to eliminate delamination. This isn’t a collection of guesses; it’s a methodical process that addresses each potential failure point, ensuring a strong, reliable bond for your TPE overmolding parts.

A) Solution: Start with the Right Formulation

Our Partner’s Recommendation: The solution is direct: Use a TPE grade specifically engineered and validated for overmolding onto ABS. You cannot force a non-polar TPE to bond to a polar substrate. Our partner has already solved this at the molecular level. Their solution involves advanced formulations that may incorporate polar additives like TPU or utilize grafted SEBS polymers to create inherent compatibility with ABS.
Our Role: Our job is to make this simple for you. Based on our partnership, we provide direct access to the exact grades that have been perfected for this application, removing the guesswork from material selection.

B) Solution: Implement Strict Material Quality Assurance

Our Partner’s Recommendation: Adhere to strict, non-negotiable pre-processing protocols. Good parts come from good materials.
1. Mandatory Drying: Their official guidance, based on extensive lab testing, is to pre-dry the ABS substrate at 80°C for 2-4 hours. Crucially, the TPE pellets should also be dried according to the technical datasheet to remove any absorbed moisture or volatiles that can compromise the bond. The goal is to ensure both materials are pristine and dry at the point of injection.
2. Demand Cleanliness: They strongly advise designing molds that eliminate the need for mold release agents. If an agent is unavoidable for complex parts, a specific, tested, and approved agent must be used sparingly, and you must confirm it leaves no residue that interferes with the TPE overmolding bonding process.

C) Solution: Optimize the Molding Process Systematically

Our Partner’s Recommendation: Fine-tune the machine settings systematically, focusing on heat and pressure.
Step 1: Adjust Temperature. The first and most critical adjustment is the melt temperature of the TPE. Their technical support team recommends a range of 160°C to 200°C. Start within this range and increase in small increments to ensure there is enough thermal energy to activate the ABS surface without causing degradation.
Step 2: Optimize Cooling and Pressure. To prevent delayed stress cracking, their engineers recommend focusing on the cooling and holding phases. Ensure the part is cooled sufficiently under pressure to minimize internal stresses and allow the bond to set properly.
Step 3: Refine Mold Design. For complex parts with large flow paths, they recommend working with a mold designer to add features like extra gate locations. This ensures hot material fills the cavity quickly and evenly, preventing cold spots where the bond could be weak.
Step 4 (Optional): Consider Post-Processing. For applications requiring the absolute maximum bond strength, their experts note that a post-molding heat treatment (like baking the part in an oven) can sometimes help further improve the TPE-ABS adhesion.

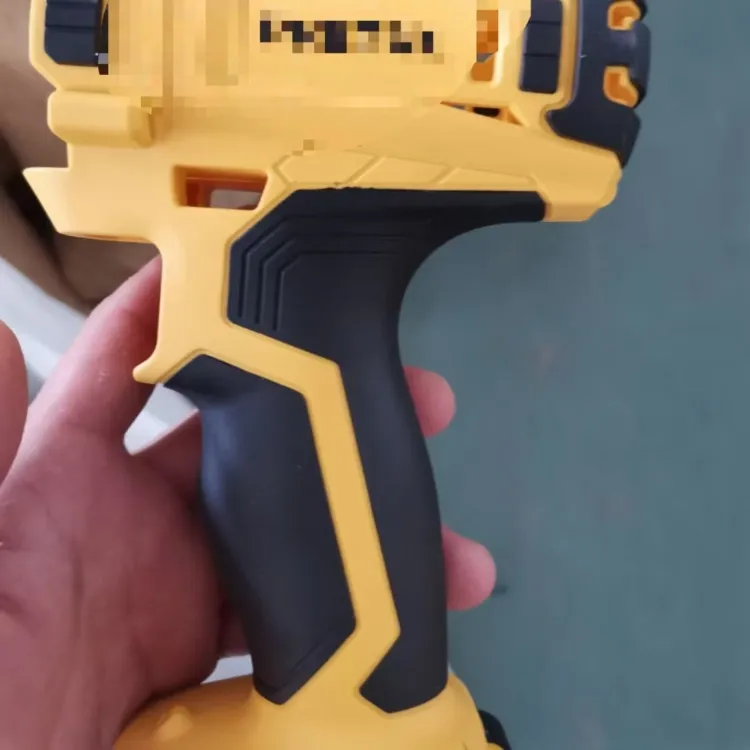

Expanding the Framework: Solving TPE Overmolding Challenges with PA (Nylon)

While ABS is a common substrate, many high-performance applications demand the unique properties of engineering plastics like Polyamide (PA), commonly known as Nylon. Our partner’s expertise extends deep into this area, and they acknowledge that creating a permanent TPE overmolding bond with PA is one of the tougher challenges in the industry. However, by applying their systematic approach, it is entirely solvable. Here is their expert guidance for achieving a robust bond with Nylon.

The Core Challenge & Material Solution: Overcoming Polarity Mismatch

Our Partner’s Analysis: The primary reason TPE struggles to bond with PA is an extreme difference in polarity. Nylon is a highly polar material, whereas the standard SEBS used in TPE is non-polar. According to their material scientists, this creates a natural repulsion at the molecular level.
The Engineered Solution: To solve this, their R&D team has developed highly specialized TPE formulations. They achieve this by modifying the TPE’s base polymer system, often by incorporating special “grafting agents”. These agents act as a molecular bridge, raising the TPE’s polarity to a level where it becomes chemically attracted to the PA substrate. While some standard TPUs can bond to PA, they are often limited to higher hardness levels (typically 70A and above). For soft-touch applications requiring lower durometers, our partner’s advanced, grafted SEBS-based compounds are the superior solution.

Critical Process Adjustments for TPE-on-Nylon Bonding

Our partner emphasizes that an engineered TPE is only half the solution. The molding process must be precisely controlled to create the conditions for a successful bond.

1. Aggressive Heat is Essential: The single most critical process factor is temperature. Their engineers have a clear mantra for PA overmolding: the bond must be “melt-welded.” This means the TPE melt temperature must be high enough to slightly re-melt the surface of the Nylon part on contact. This creates a true fusion between the two materials. A low molding temperature is a guarantee for failure.
2. Pre-Heat the Nylon Part: For two-shot molding processes (where the PA part is molded first and then transferred to a second mold), our partner strongly recommends pre-heating the PA insert. Baking the Nylon parts at 120-130°C for 1-2 hours before overmolding provides critical thermal energy at the bonding interface, dramatically improving the chances of a successful melt-weld.
3. Design for “Fast & Hot” Injection: The principle of “fast and hot” must guide the mold design. For parts with large surface areas, the TPE has a long way to flow, causing it to cool down before it can bond. To counter this, their mold design experts advise using multiple injection gates to reduce the flow path distance and fill the cavity quickly, ensuring the entire bonding surface is exposed to TPE at its optimal temperature.
4. Supplement with Mechanical Interlocks: While the goal is a strong chemical bond, they also advise using mechanical design features as a failsafe. Incorporating grooves, holes, or even roughening the PA surface gives the TPE a physical structure to grip. Their experts are clear, however: this is a physical anchor that improves structural integrity, not a substitute for achieving a true chemical bond.

Quick-Reference About TPE Overmolding Troubleshooting Table

Symptom	Potential Root Cause (from our Partner’s experience)	Recommended Action Plan
Delamination on ABS	1. Incorrect TPE Grade: Polarity mismatch. 2. Moisture: In ABS and/or TPE. 3. Low Melt Temp: Not activating ABS surface. 4. Contamination: Mold release, oils.	1. Contact Us: Select a validated, ABS-compatible TPE grade. 2. Mandatory Drying: Dry ABS @ 80°C (2-4h) and TPE per spec. 3. Increase Heat: Raise melt temp in increments into 160-200°C range. 4. Ensure Cleanliness: Eliminate mold release if possible.
Delamination on PA/Nylon	1. Severe Polarity Mismatch: Standard TPE will not bond. 2. Insufficient Heat: PA requires very high energy to bond. 3. Cold PA Insert: Part cools before TPE injection.	1. Contact Us: Use a specialized, grafted TPE designed for PA. 2. Aggressive Heat: Increase melt temp to achieve a “melt-weld.” 3. Pre-Heat PA: Bake Nylon inserts @ 120-130°C for 1-2h.
Delayed Cracking	High Internal Stress: Improper cooling/pressure settings.	Optimize Process: Adjust holding pressure and cooling time to allow stress to relax.
Weak Bond at End of Flow Path	Cooling Melt Front: Mold design has long flow paths.	Optimize Mold: Consider adding more injection gates to reduce flow distance and time.

The Bridge to Success: How We Put This Expertise to Work for You

Understanding the theory is one thing; implementing it is another. As your material partner, we do more than just supply a bag of high-performance TPE pellets. We provide a direct and simple path to solving your TPE overmolding challenges. The process is straightforward:

Initial Consultation: We start by listening. You tell us about your project, your substrate (ABS, PA, or others), and your performance requirements.
Expert Material Selection: Leveraging our partner’s deep technical knowledge, we recommend the specific TPE grade that is engineered and proven for your exact application. We eliminate the guesswork for you.
Process Support: We provide you with our partner’s official technical datasheets (TDS) and processing guidelines. If challenges arise, we act as your direct line to the material science team that developed the product.

This partnership model means you are not alone in the troubleshooting process. You gain access to world-class material expertise through a single, dedicated point of contact.

Conclusion: Your Partner in Material Excellence

At our core, we are experts in TPE extrusion. That expertise taught us a fundamental lesson: success is impossible without the right material. It was this non-negotiable belief that drove us to find a partner who applies the same rigorous standards to the complex world of injection molding.

When you work with us, you get more than just a bag of high-quality TPE pellets. You gain a partner who has done the exhaustive vetting work for you. You gain access to the proven solutions and deep technical knowledge of a world-class material science team, all through a single, dedicated point of contact who understands the TPE industry. We bridge the gap between their R&D lab and your production floor.

If you are ready to stop the cycle of troubleshooting and start producing high-quality TPE overmolding ABS or PA, even PC and PP parts with confidence, contact us. Let’s connect you with a material solution that is backed by real, verifiable expertise and a partnership designed for your success.
